Mega GC Column
For more than 35 years, MEGA has developed and manufactured gas chromatography GC columns offering both general-purpose and application-specifc solutions to analysts around the world.Today we produce and offer:
one of the most complete range of analytical columns for GC, GC-MS, FAST-GC, Wide-Bore GC, Chiral-GC
special and innovative products and accessories for Multidimensional-GC (inlcuding GCxGC), High Temperature GC and MEMS micro-fabricated "Lab-on-a-chip" GC
excellent effciency and inertness; we produce and test each column one-by-one to assure the maximum column-to-column reproducibility and quality
custom products by request
support and services for Your GC analysis
GC Columns Available Dimensions
FAST
| Internal Diameter | Length* | Film Thickness** |
|---|---|---|
| 0.05mm | from 1 to 5m | from 0.05 to 0.25µm |
| 0.075mm | from 1 to 10m | from 0.05 to 0.50µm |
| 0.10mm | from 1 to 20m | from 0.05 to 1.40µm |
| 0.15mm | from 1 to 40m | from 0.05 to 2.00µm |
CONVENTIONAL
| Internal Diameter | Length* | Film Thickness** |
|---|---|---|
| 0.18mm | from 5 to 60m | from 0.05 to 2.00µm |
| 0.20mm | from 5 to 105m | from 0.05 to 2.00µ |
| 0.25mm | from 5 to 105m | from 0.05 to 3.00µm |
| 0.32mm | from 5 to 105m | from 0.05 to 10.00µm |
WIDE-BORE
| Internal Diameter | Length* | Film Thickness** |
|---|---|---|
| 0.45mm | from 5 to 75m | up to 7.00µm |
| 0.53mm | from 5 to 75m | up to 10.00µm |
Completely customize your column by selecting every combination of sizes and asking for out-ofcatalog confgurations. Since 1980 we develop ad-hoc solutions for your specifc analytical problem.We are also able to tune the selectivity of the stationary phase to respond to particular needs.
All our stationary phases are available for FAST, Conventional,Wide-Bore and Multidimensional-GC, including solutions and kits for GCxGC.
Products Highlight
Metal MTX
capillary columns for high temperature GC (up to 420-430°C with our HT phases). You can require almost every stationary phase (not HT too) to be coated onto the high inertness metal capillary tubing. Contact us to have more details and send your request
MEGA-WAX Plus
column is a new high stable and inert PEG phase (270°C max Temperature) excellent also for GC-MS analysis, truly equivalent to InnoWax columns. Crossbonded and water resistant
MEGA-FFAP EXT
column is a crossbonded and water resistant version of the well known MEGA-ACID (FFAP) phase with also an extended working temperature range
MEGA-2D
single column is a revolutionary unique tubing column coated with two in series different stationary phases for GCxGC and MD-GC applications. No connections are needed. Contact us to have more information and discover new selectivities using MEGA2D technology applied to conventional 1D GC too
MEGA-XMLB
column is a new selectivity low polarity phase ideal as confrmation column. MEGA-XMLB is a low bleeding and high temperature stable column (up to 360°C) excellent for Pesticides, PCBs and PAHs analysis for example
MEGA-WAX BA
is a basic treated PEG column specifcally designed for basic compounds analysis, including alkylamines, diamines, triamines etc
| Stationary Phase | T max * | Equivalent/Alternative to | EPA/USP Methods ** | Applications |
|---|---|---|---|---|
| MEGA-1 100% methyl polysiloxane |
up to 350°C | DB-1, HP-1, AT-1(+), ZB-1, 007-1, Rtx-1, BP-1, SPB-1, CP Sil 5 CB |
EPA: 504.1, 505, 551, 606, 612, 8141A/B, etc.** USP: G1, G2, G9, G38 |
General purpose column Solvent impurities, PCBs, SimDist, drugs,natural gases, essential oils, semivolatiles,pesticides, phenols, etc |
| MEGA-5 5% phenyl, 95% methyl polysiloxan |
up to 350°C | DB-5, HP-5, AT-5(+), ZB-5 007-5, Rtx-5, BP-5, SPB-5, CP Sil 8 CB |
EPA: 506, 611, 604, 607, 608 8015, 8041, 8082, 8091, etc.** USP: G27, G36, G |
General purpose column Solvent impurities, PCBs, hydrocarbons, essential oils, semivolatiles, pesticides, phenols, etc. |
| MEGA-SE52 5% phenyl, 95% methyl polysiloxan |
up to 350°C | SE52 | USP: G27, G36, G41 | General purpose column Solvent impurities, PCBs, hydrocarbon essential oils, semivolatiles, triglycerides, pesticides, poly-waxes, etc. |
| MEGA-SE54 5% phenyl, 1% vinyl, 94% methyl polysiloxane |
up to 350°C | SE54 | USP: G27, G36, G41 | General purpose column Solvent impurities, PCBs, hydrocarbon essential oils, semivolatiles, allergens, pesticides, etc. |

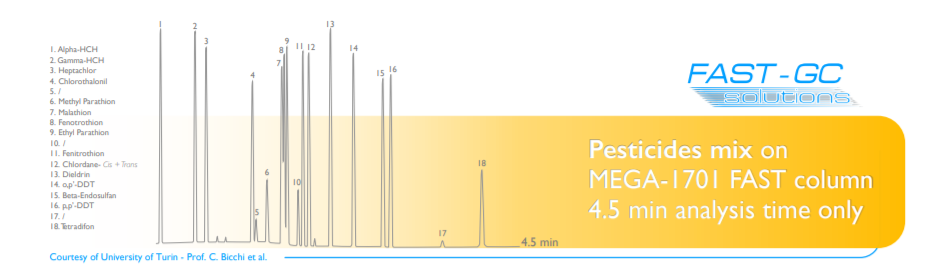

| MEGA-170 14% cyanopropylphenyl, 86% methyl polysiloxane |
up to 280°C | DB-1701, HP-1701, AT-1701(+), ZB-1701, 007-1701, Rtx-1701, BP-10, SPB-1701, CP Sil 19 CB |
EPA: 513, 515.2, 552.2, 607, 619, 622, 8091, 8121, etc.** USP: G46 |
General purpose column Residual solvents, oxygenated pesticides, essential oils, allergens, etc. Ideal as confrmation column and GCxGC applications |
| MEGA-17 50% phenyl, 50% methyl polysiloxane |
up to 340°C | DB-17, DB-608, HP-17, AT-50(+), ZB-50, 007-17, Rtx-17, BPX-50, SPB-50, CP Sil 24 CB |
EPA: 604, 608, 619, 8060, 8081, etc.** USP: G3, G17 |
General purpose column Phthalate esters, herbicides, pharmaceuticals, etc. Ideal as confrmation column and GCxGC applications |
| MEGA-624 6% cyanopropylphenyl, 94% methyl polysiloxane |
up to 280°C | DB-624, HP-624, AT-624(+), ZB-624, 007-624, Rtx-624, Vocol, SPB-624, VF-624 ms |
EPA: 501.3, 502.1, 502.2, 601, 624, 1624, 8020, 8021, etc.** USP: G43, 467 (OVIs) |
General purpose column Volatile organic pollutants, purgeable aromatics, purgeable hydrocarbons, VOCs, pharmaceuticals, etc. |
| MEGA-WAX polyethylene glycol (PEG) |
up to 250°C | DB-Wax, HP-Wax, AT-Wax(+), ZB-Wax, 007-CW, Rtx-Wax, BP-20, CP Wax 52 CB |
EPA: 602, 603, 619, 8015C, etc.** USP: G14, G15, G16, 467 (OVIs) |
General purpose column FAMEs, favor compounds, essential oils, BTEX aromatics, solvents, alcohols, etc. Tune yourWax column polarity (i.e.WAX-20M,WAX-400,WAX-8M and more!). Ask us for more info |
| Stationary Phase | T max * | Equivalent/Alternative to | EPA/USP Methods ** | Applications |
|---|---|---|---|---|
| MEGA-1 MS low bleeding 100% methyl polysiloxane |
up to 350°C | DB-1 ms (UI), HP-1 ms, AT-1 ms(+), ZB-1 ms, Rtx-1 ms, Equity-1, CP Sil 5 CB ms |
EPA: 504.1, 505, 606, etc.** USP: G1, G2, G9, G38 |
General purpose column for GC-MS See MEGA-1 phase on this page |
| MEGA-5 MS low bleeding 5% phenyl, 95% methyl polysiloxane |
up to 360°C | DB-5 ms (UI), HP-5 ms, AT-5 ms(+), ZB-5 ms, 007-5 ms, Rtx-5 ms, Equity-5, BPX-5 |
EPA: 513, 528, 552, 610, 613, 1625, 1653, 8015B, 8091, 8100, 8141A/B, 8280A, etc.** USP: G27, G36, G41 |
General purpose column for GC-MS See MEGA-5 phase on this page |
| MEGA-5 MS Xil low bleeding silphenylene based MS phase |
up to 360°C | DB-5 ms (UI), Rtx-5 Sil ms, SLB-5 ms, ZB-5 ms |
EPA: 513, 515.2, 521, 525, 529, 552.2, 604, 610, 625, 1613, 1625, 8041 8061A, 8081A, 8121, 8270C, etc.** USP: G27, G36, G41 |
General purpose column for GC-MS Dioxins and furans, herbicides, phthalate esters, POCs, chlorinated acids, etc. |
| MEGA-35 MS low bleeding 35% phenyl, 65% methyl polysiloxane |
up to 340°C | DB-35 ms, BPX-35, BPX-608, ZB-MultiResidue-2, Rtx-35 Sil ms |
EPA: 507, 508, 552, 614, 615, 622, 8141A, 8151A, etc.** USP: G28, G32, G42 |
General purpose column for GC-MS See MEGA-35 phase on the next page |
| MEGA-17 MS low bleeding 50% phenyl, 50% methyl polysiloxane |
up to 340°C | DB-17 ms, Rtx-17 Sil ms | EPA: 505, 610, 614, 619, 8040, 8041, etc.** USP: G3, G17 |
General purpose column for GC-MS See MEGA-17 phase on the previous page |
| MEGA-225 MS low bleeding 25% cyanopropyl, 25% phenyl, 50% methyl polysiloxane |
up to 240°C | DB-225 ms | EPA: 8095, etc.** USP: G7, G19 |
General purpose column for GC-MS See MEGA-225 phase on the next page |
| MEGA-624 MS low bleeding 6% cyanopropylphenyl, 94% methyl polysiloxane |
up to 280°C | VF-1301 ms, VF-624 ms |
EPA: 8260B, etc.** USP: G43, 467 (OVIs) |
General purpose column for GC-MS See MEGA-624 phase on the previouspage |
| MEGA-WAX MS low bleeding polyethylene glycol (PEG) |
up to 270°C | Stabilwax, ZB-Wax plus, InnoWax, VF-WAX ms |
EPA: 602, 603, 619, 8015C, 8121, etc.** USP: G14, G15, G16, etc.** |
General purpose column for GC-MS See MEGA-WAX phase on the previouspage |
| Stationary Phase | T max * | Equivalent/Alternative to | EPA/USP Methods ** | Applications |
|---|---|---|---|---|
| MEGA-10 100% cyanopropyl polysiloxane |
up to 260°C | HP-88, AT-Silar, Silar 10 Rtx-2560, SP-2560, BPX-70 CP Sil 88, ZB-FAME |
EPA: 613, 1613, 8290B, etc.** USP: G5, G8, G48 |

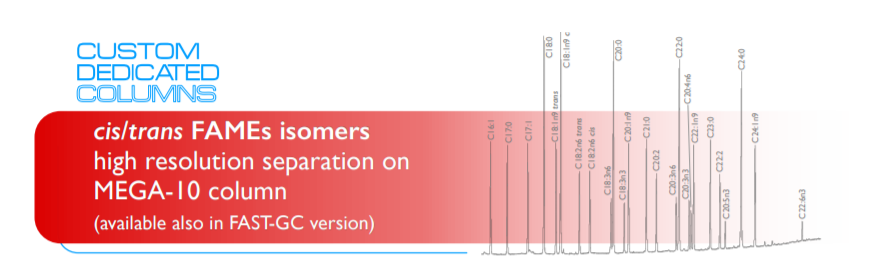

High polarity column ideal for cis/trans FAMEs isomers analysis, available also for FAST-GC |
| MEGA-13 13% phenyl, 87% methyl polysiloxane |
up to 350°C | CP Sil 13 CB | EPA: 601, 602, 624, etc.** | General purpose column, ideal as confrmation column |
| MEGA-20 20% phenyl 80% methyl polysiloxane |
up to 340°C | AT-20(+), 007-7, Rtx-20, SPB-20 |
USP: G28, G32 | General purpose column, ideal as confrmation column |
| MEGA-200 trifuoropropyl, methyl polysiloxane |
up to 250°C | DB-200, DB-210, AT-210(+), 007-210, Rtx-200, SP-2401, VF-200 ms |
EPA: 551, 612, 625, 8095, etc.** USP: G6 |
Unique selectivity column. Freon fuorocarbons, ketones, alcohols, organophosphorus pesticides, etc. |
| MEGA-225 25% cyanopropyl, 25% phenyl 50% methyl polysiloxane |
up to 260°C | DB-225, HP-225, AT-225(+), 007-225, Rtx-225, BP-225, CP Sil 43 CB |
EPA: 8095, etc.** USP: G7, G19, G26 |
Mid-to-high polarity phase Carbohydrates, sterols, favor compounds, etc. |
| MEGA-35 35% phenyl, 65% methyl polysiloxane |
up to 340°C | DB-35, HP-35, AT-35(+), ZB-35, 007-11, ZB-MultiResidue-2, Rtx-35, SPB-35, SPB-608 |
EPA: 507, 508, 513, 551.1, 615, 622, etc.** USP: G28, G32, G42 |
General purpose column Pesticides, PCBs, substituted polar compounds, phenols, etc. Ideal as confrmation col |
| MEGA-50 50% cyanopropyl, 50% methyl polysiloxane |
up to 260°C | DB-23, Silar-5, Rtx-2330, SP-2330 |
USP: G8 | Mid-to-high polarity phase Carbohydrates, sterols, FAMEs, favor compounds, etc. |
| MEGA-ALC 1&2 proprietary specifc phases |
up to 280°C | DB-ALC 1&2, Rtx-BAC 1&2 |
- | Application specifc column for blood alcohols testing(see application notes on www.mega.mi.it) |
| MEGA-BASIC proprietary specifc phase |
n.d. | unique column | - | Application specifc column for basic compouns (e.g. amines) (see application notes on www.mega.mi.it) |
| MEGA-BIODIESEL phases for biodiesel analysis |
up to 380°C (EN14105) |
Biodiesel Columns | EN 14105 (ASTM 6584), EN 14103, EN 14110, EN 14331 |
Application specifc column for free and total glycerine (phase stable up to 380°C) and for FAMEs in biodiesel analysis (see application notes on www.mega.mi.it) |
| MEGA-DAI 1&2 proprietary unique phases for Direct Aqueous Injections |
up to 320°C | unique columns | - | Application specifc column for direct introduction of aqueous samples, thus minimizing sample preparation (see application notes on www.mega.mi.it) |
| MEGA-FFAP EXT acid modifed polyethylene glycol (PEG) |
up to 260°C | DB-FFAP, AT-1000(+), ZB-FFAP, 007-FFAP, Stabilwax-DA, BP-21, Nukol, CP Wax 57 CB |
EPA: 8032, etc.** USP: G14, G15, G16, G25, G35, G39 |
General purpose column ideal for free acids, FAMEs, BTEXaromatics, favor compounds, alcohols, spirits, polar compounds, etc.Extended temperature range phase, crossbonded. Aqueous samples compatible |
| MEGA-JX 100% methyl polysiloxane |
up to 350°C | no equivalent on the marke |
USP: G1, G2, G9, G38 | General purpose apolar column |
| MEGA-LAP proprietary unique phase for Lipids Analysis |
up to 370°C | unique column | - | Application specifc column for lipids, sterols and triglycerides analysis (see application notes on www.mega.mi.it) |
| MEGA-PAH unique phase for Polycyclic Aromatic Hydrocarbons |
up to 350°C | unique colum | EPA: 610, 8100, etc.** | Application specifc column for polycyclic aromatics hydrocarbons (see application notes on www.mega.mi.it) |
| MEGA-PLU copolynmer polyethylene glycol + methyl polysiloxane |
n.d. | Agilent "DX" columns series |
EPA: 505, etc.** | Discover new selectivities Choose also between MEGA-PLUS 25 (25% PEG), MEGA-PLUS 75 (75% PEG)... and others! We can customize these columns as you need! |
| MEGA-POF 1&2 proprietary phases for pesticides, herbicides and insecticides |
n.d. | unique columns ZB-MultiResidue-1 (MEGA-POF 1) |
EPA: 622, etc.** | Application specifc columns developed for pesticides, herbicides, insecticides analysis etc. (see application notes on www.mega.mi.it) |
| MEGA-1 PONA PDMS optimized for hydrocarbons analysis |
up to 350°C | DB-Petro, HP-Pona, Rtx-1 Pona, Petrocol |
ASTM D6730-01, etc.** | Optimized phase for DHA (Detailed Hydrocarbons Analysis), PONA, PIANO and PNA analysis |
| MEGA-PS255 1% vinyl, 99% methyl polysiloxane |
up to 350°C | no equivalent on the market |
- | Apolar phase, suitable for high flm thickness columns, to analyze solvents, alcohols, volatiles, etc. |
| MEGA-PS264 5.8% phenyl, 0.2% vinyl, 94% methyl polysiloxane |
up to 350°C | no equivalent on the market |
- | Apolar phase, suitable for high flm thickness columns, to analyze solvents, alcohols, volatiles, etc. |
| MEGA-SE30 100% methyl polysiloxane |
up to 350°C | SE30 | EPA: 504.1, 505, 606, 8141A, etc.** USP: G1, G2, G9, G38 |
General purpose apolar column |
| MEGA-SOLVE 1&2 proprietary unique phases for complex solvents mix analysis |
n.d. | unique columns TCEP (MEGA-SOLVE 2) |
- | Application specifc columns developed for complex solvents mixtures analysis. MEGA-SOLVE 2 is ideal for aromatics and oxygenates in gasoline (see application notes on www.mega.mi.it) |
| MEGA-TCEP 1,2,3-tris- (2-cyanoethoxy)propane |
up to 150°C | CP-TCEP, Rt-TCEP, SPB-TCEP |
- | Application specifc columns ideal for aromatics and oxygenates in gasoline |
| MEGA-VOC 1&2 proprietary phases for Volatile Organic Compounds |
n.d. | unique columns | EPA: 503.1, 504.1, 524.2, 551.1, 601, 602, 603, 1624, 8010B, 8021B, 8030A, 8260B, etc.** |
Application specifc columns for volatiles organic compounds (OVIs), solvents and purgeable compounds. Due to the high max. temperature, they are ideals for two-parallel columns confg. in the same oven (see application notes on www.mega.mi.it) |
| Stationary Phase | T max * | Equivalent/Alternative to | EPA/USP Methods ** | Applications |
|---|---|---|---|---|
| MEGA-1 HT 100% methyl polysiloxane for high temperature |
up to 400°C | high temperature column DB-1 HT, ZB-1 HT (Inferno) |
- | High Temperature general purpose column See MEGA-1 phase. High Molecular Weight Waxes, Motor Oils, Polymers/Plastics, Simulated Distillation |
| MEGA-DEX DAC Gamma |
up to 230°C | dex xeb Chiral columns |
chiral-enantiomeric separations |
Diacethyl TBS Gamma cyclodextrin based column. See and download on www.mega.mi.it the application notes and a database with hundreds chiral compounds separated with MEGA-DEX columns |
| MEGA-DEX DAC Beta |
up to 230°C | dex xeb Chiral columns |
chiral-enantiomeric separations |
Diethyl TBS Beta cyclodextrin based column. See and download on www.mega.mi.it the application notes and a database with hundreds chiral compounds separated with MEGA-DEX columns |
| MEGA-DEX DET Gamma |
up to 230°C | dex xeb Chiral columns |
chiral-enantiomeric separations |
Diethyl TBS Gamma cyclodextrin based column. See and download on www.mega.mi.it the application notes and a database with hundreds chiral compounds separated with MEGA-DEX columns |
| MEGA-DEX DMP Beta |
up to 230°C | dex xeb Chiral columns |
chiral-enantiomeric separations |
Dimethyl-pentyl TBS Beta cyclodextrin based column. See and download on www.mega.mi.it the application notes and a database with hundreds chiral compounds separated with MEGA-DEX columns |
| MEGA-DEX DMT Beta |
up to 230°C | dex xeb Chiral columns |
chiral-enantiomeric separations |
Dimethyl TBS Beta cyclodextrin based column. See and download on www.mega.mi.it the application notes and a database with hundreds chiral compounds separated with MEGA-DEX columns |
| MEGA-DEX B-SE |
up to 230°C | dex xeb Chiral columns |
chiral-enantiomeric separations |
New cyclodextrin derivative based column. See and download on www.mega.mi.it the application notes and a database with hundreds chiral compounds separated with MEGA-DEX columns |
| MEGA-DEX B-03 |
up to 230°C | dex xeb Chiral columns |
chiral-enantiomeric separations |
New cyclodextrin derivative based column. See and download on www.mega.mi.it the application notes and a database with hundreds chiral compounds separated with MEGA-DEX columns |
| MEGA-DEX G-01 |
up to 230°C | dex xeb Chiral columns |
chiral-enantiomeric separations |
New cyclodextrin derivative based column. See and download on www.mega.mi.it the application notes Unique column on the market able to separate Bornyl Acetate enantiomers |
| MEGA-DEX G-03 |
up to 250°C | dex xeb Chiral columns |
chiral-enantiomeric separations |
New cyclodextrin derivative based column. See and download on www.mega.mi.it the application notes Developed for pyrethroids and pesticides chiral separationss |
| Dex FAST | MEGA has more than 35 years experience in manufacturing and developing chiral GC columns. Our MEGA-DEX GC columns line is growing; check on our website or contact us to have more info and application notes about, for example, our MEGA-DEX B-01 and B-02 chiral phases. A full line of MEGA-DEX FAST chiral columns is also available in order to speed up your enantiomeric separations while keeping excellent resolution effciency. |
|||
| Stationary Phase | T max * | Equivalent/Alternative to | EPA/USP Methods ** | Applications |
|---|---|---|---|---|
| MEGA-1 HT 100% methyl polysiloxane for high temperature |
up to 400°C | high temperature column DB-1 HT, ZB-1 HT (Inferno) |
- | High Temperature general purpose column See MEGA-1 phase. High Molecular Weight Waxes, Motor Oils, Polymers/Plastics, Simulated Distillation |
| MEGA-5 HT high temperature 5% phenyl, 95% methyl polysiloxane |
up to 400°C | high temperature column DB-5 HT, ZB-5 HT (Inferno) |
- | High Temperature general purpose column See MEGA-5 phase. High Molecular Weight Waxes, Diesel Fuels, Simulated Distillation, Surfactants, Triglycerides |
| MEGA-8 HT high temperature low-to-mid polarity special phase |
up to 400°C | high temperature column HT8 |
- | High Temperature general purpose column Ideal for PCBs compounds, Pesticides, environmental analysis |
| MEGA-35 HT high temperature 35% phenyl, 65% methyl polysiloxane |
up to 370°C | high temperature column ZB-35 HT (Inferno) |
- | High Temperature general purpose column See MEGA-35 phase. Semi-volatiles analysis, Pesticides, Pharmaceuticals |
| MEGA-17 HT high temperature 50% phenyl, 50% methyl polysiloxane |
up to 370°C | high temperature column DB-17 HT |
- | High Temperature general purpose column See MEGA-17 phase. Ideal for confrmation analysis, ideal as high polarity dimension in GCxGC-HT confgurations |
| MEGA-65 HT high temperature 65% phenyl, 35% methyl polysiloxane |
up to 360-370°C | high temperature column 007-65HT, Rtx-65TG, TAP-CB |
- | High Temperature column Ideal for triglycerides separations based on carbon number and degree of unsaturation |
| MEGA-SE54 HT high temperature 5% phenyl, 1% vinyl, 94% methyl polysiloxane |
up to 400°C | high temperature unique column |
- | High Temperature general purpose column See MEGA-SE54 phase. High boiling petroleum products, Long-chained hydrocarbons |
| MEGA-1701 HT high temperature 14% cyanopropylphenyl, 86% methyl polysiloxane |
up to 320°C | high temperature unique column |
- | High Temperature general purpose column See MEGA-1701 phase. Ideal for confrmation analysis, ideal as mid-polar column in GCxGC-HT confgurations |
| MEGA-WAX HT high temperature polyethylenglycol (PEG) |
up to 300°C | high temperature unique column |
- | High Temperature unique PEG phase Extend the temperature limits of your FAST-GC and GCxGC methods while using a polar WAX phase |
| MegaHT High Temperature Columns |
For our MEGA-HT High Temperature Columns range with fused silica tubing, we use specifcally engineered high resistance polyimide coating, resulting in high temperature endurance and fexure with superior bend radius. |
|||
| FAST-GC Solutions |
All our stationary phase are available for FAST-GC. Contac us to have more details. You can download on www.mega.mi.it our free guide to FAST-GC with a tons of application notes and techical tips to perform and optimixe your FAST-GC analysis. 0.15mmI.D., 0.18mm I.D. and 0.20mm I.D. tubing sizes are available for all our columns. |
|||
Built-in Retention Gap - No Connections needed
MEGA-GAP columns line incoroporates both guard column and analytical column in a continuous length of tubing, eliminating the connection and all connection-associated problems. The guard column side is permanently marked with our oven temperature resistant labels.
Original Large Volume Gaps (UNCORET) columns (0.53mm, 12m Integrated Gap + 3m coated) are available from MEGA.
Extend your column's lifetime with this connection-free solution!
Easy to handle - Excellent inertness - Easy to install
Retention Gaps deactivated for any purpose: our Retention Gaps are suitable for any GC analytical need. Use with polar solvents, apolar solvents, water containing samples injections and for general use. They are available in any internal diameter size (0.05, 0.075, 0.10, 0.15, 0.18, 0.20, 0.25, 0.32, 0,45 and 0,53mm I.D.) with our standard fused silica tubing or with our High-Temperature fused silica tubing. Any length available, also in precut pieces individually packaged and ready to use. By request we also pre-install (with our Press-Fit connectors, see below) the selected retention gap on the GC column for a ready-to-install solution.
MEGA Retention Gaps have an unsurpassed chemical inertness. Use our Retention Gaps for focusing the analytes when a large (liquid) sample is introduced directly into the column and/or to protect the analytcal column from contamination. Deactivated Retention Gaps are also useful as connecting pipes to various part of GC systems with different confgurations.
Easy to handle - Easy to install A simple pressure to assure a perfect seal
MEGA Press-Fit Connectors allow you to simply connect, with a tight seal, different columns or Retenetion Gaps in many ways. Our Press-Fit connectors are universal to ft any tubing size. Available as linear 2-ways union (to connect two columns or a Retention Gap to the analytical column), "Y" 3-ways (e.g. ideal to connect two columns to a single injector - double detector GC confguration) or personalized Multiwas connectors for advanced analytical system confgurations as MD-GC and other custom settings.
Common Phases Polarity Quick View
GCxGC Solutions
MEGA offers unique and innovative products for your GCxGC analysis.
We can provide completely custom GCxGC solutions, including readyto-use kits.
The selectivity of the stationary phase plays a fundamental role in GC and it is even more important in GCxGC. Ask us to tune the selectivity of the stationary phase thus to explore new and unique solutions and to optimize the orthogonality and the effciency of your GCxGC confguration.
Application Notes
Visit our applications webpage to discover hundreds application notes and to fnd useful information on how to develop your analytical method. New technical notes are constantly added.
